Catalog Number - 83501-80-005

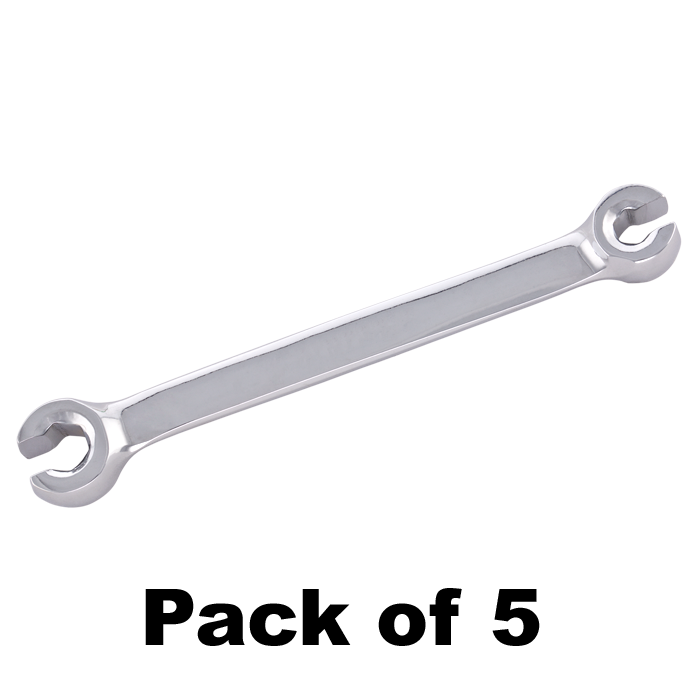

The 83501‑80‑005 Flare Nut Wrench (5‑Pack) is a multi‑user solution designed for laboratories working with metric HPLC fittings and injector valves, where precise torque control and secure engagement are critical for maintaining leak‑free connections.

Each wrench features dual metric sizes (6 mm and 8 mm), commonly used on:

• HPLC injector valves (e.g., Rheodyne™, Valco™)

• Metric column hardware and fittings

• Instrument plumbing systems with metric flats

The flare‑nut design provides increased surface contact compared to standard open‑end wrenches, allowing the tool to grip more of the fitting circumference. This reduces the risk of:

• Slippage during tightening

• Rounding or damaging fitting flats

• Uneven torque application

The wrench’s optimized shaft length delivers the ideal balance between leverage and control, enabling users to:

• Apply sufficient torque for secure fittings

• Avoid over‑tightening that can damage threads or sealing surfaces

• Maintain consistent and repeatable connections

The 5‑pack configuration ensures tool availability across multiple workstations or technicians, improving maintenance efficiency and standardization.

Why Choose a 5‑Pack Flare Nut Wrench Set?

This configuration is ideal for:

• Multi‑instrument chromatography laboratories

• Service and maintenance teams

• Shared lab environments with multiple users

• Standardizing tools across workflows

Provides:

• Increased tool availability

• Reduced downtime from tool sharing

• Improved consistency in maintenance practices

Why Use a Flare Nut Wrench for HPLC?

Standard open‑end wrenches can:

• Contact only two flat points on a fitting

• Slip more easily under load

• Damage precision fittings

The flare nut design:

• Engages multiple sides of the fitting

• Distributes force more evenly

• Reduces stress on fittings

• Provides better grip and control

This is especially important for injector valves and metric connections, where fitting integrity is critical.

Key Features

Dual‑Metric Size Compatibility

• 6 mm and 8 mm flare nut sizes

• Fits common metric HPLC fittings and valves

• Reduces need for multiple tools

Flare Nut Engagement Design

• Greater contact area than standard open‑end wrenches

• Minimizes slipping and rounding

• Protects expensive fittings and connections

Optimized Length for Controlled Torque

• Provides necessary leverage without excessive force

• Helps prevent over‑tightening

• Ideal for precision chromatography systems

Bulk Efficiency

• 5‑pack configuration for multi‑user labs

• Improves workflow efficiency and readiness

• Standardizes tools across technicians

Designed for Chromatography Applications

• Ideal for HPLC injector valves and metric fittings

• Supports routine maintenance and installation

• Helps maintain leak‑free system performance

Typical Applications

• Adjusting HPLC injector valves (Rheodyne™, Valco™, etc.)

• Tightening metric tubing and column fittings

• Instrument installation and servicing

• Routine chromatography maintenance

• Multi‑user lab environments
